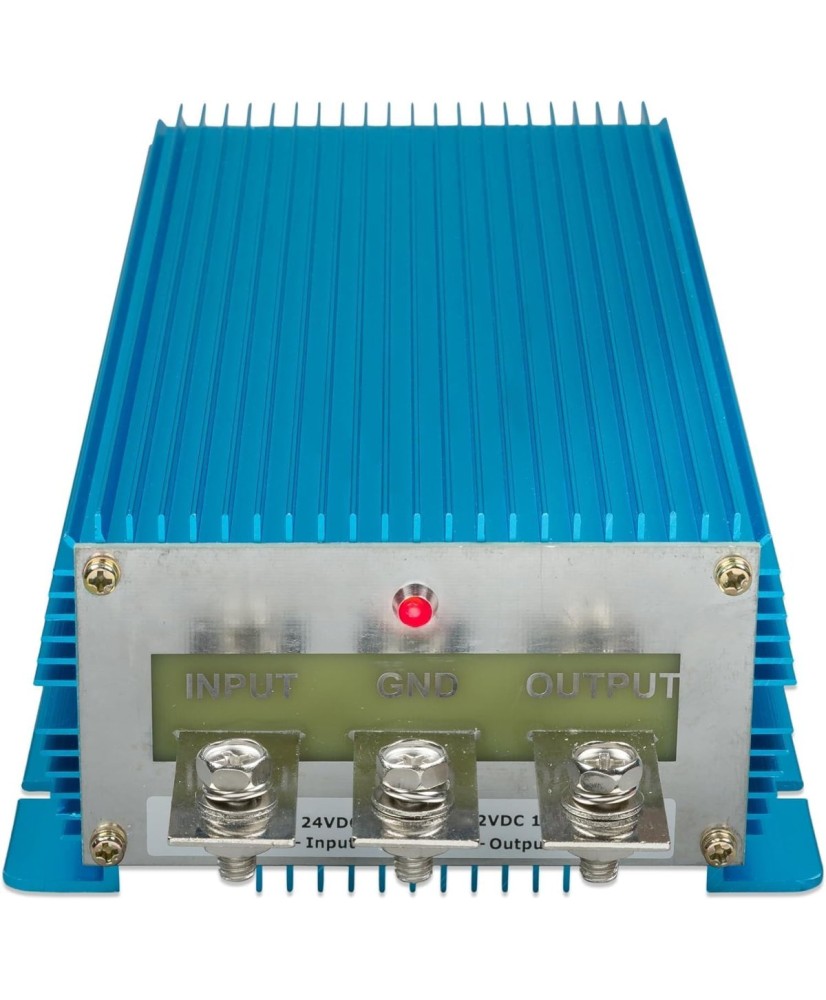

Orion IP67 24/12-100A (1200W) - Waterproof DC-DC converter 24 V to 12 V
Orion IP67 24/12-100A (1200W) is a non-isolated, waterproof DC-DC converter that converts 24 V to 12 V at 100 A. Its IP67 aluminium housing, vibration resistance and operating range from -40 to 70 °C make it suitable for installation in locations exposed to moisture, dust and vibration.
Main features:
- Input voltage: 18-35 V
- Output voltage: 12 V
- Output current: 100 A
- Maximum efficiency: 96 %
- Protections: overload, short circuit, over temperature, reverse polarity
- Protection rating: IP67
Remote on/off connector
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.
Technical specifications
| Input voltage range | 18 … 35 V |
|---|
| Under-voltage shutdown | 15 V |
|---|
| Under-voltage restart | 16 V |
|---|
| Output voltage | 12 V |
|---|
| Output voltage tolerance | 3 % |
|---|
| Ripple and noise | 0.15 Vmpp |
|---|
| Output derating above 40 °C | 3 % |
|---|
| No-load current consumption | 85 mA |
|---|
| Maximum efficiency | 96 |
|---|
| Protections | Short-circuit proof, Reverse polarity (fuse), Overload, Over temperature |
|---|
| Operating temperature range | -40 … 70 °C |
|---|
| DC connection terminals | M6 bolts |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Material | Aluminium |
|---|
| Protection category | IP67 |
|---|
| Weight | 2.15 kg |
|---|
| Height | 265 mm |
|---|
| Width | 127 mm |
|---|
| Depth | 63 mm |
|---|
| Safety | EN 60950 |
|---|
| Emission | EN 55014-1, EN-IEC 61000-6-3 |
|---|
| Immunity | EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
|---|
| Vibration | IEC68-2-6:10-150Hz/1.0G |
|---|
