Orion 12/24-8 DC-DC converter IP20 Victron Energy

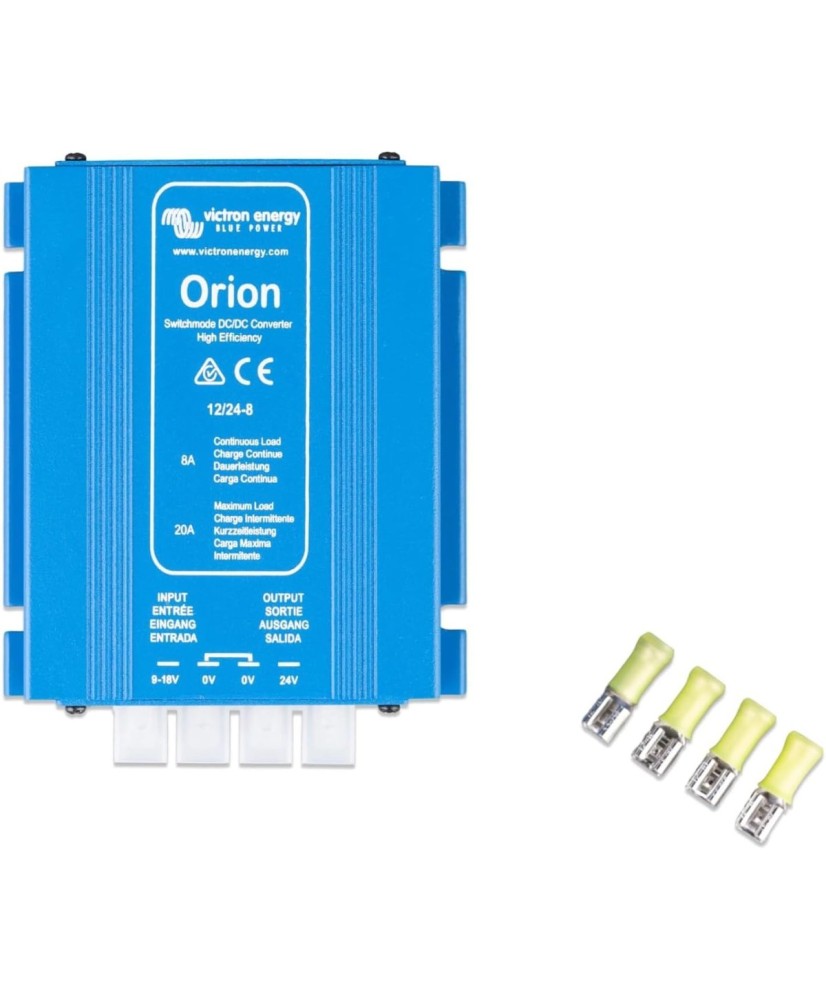

Orion 12/24-8 IP20 - DC-DC converter 12 V to 24 V

Orion 12/24-8 IP20 is a non-isolated DC-DC converter that steps a 12 V battery supply up to a 24 V output at 8 A continuous, for powering 24 V equipment in a 12 V system. The remote on/off connector allows switching with a low-power switch or the engine run/stop switch.

Main features:

• Input voltage: 9-18 V
• Output voltage: 24 V, fixed
• Output current: 8 A
• Maximum efficiency: 95 %
• DC terminals: Faston 6.3 x 0.8 mm, insulated connectors included
• Protection rating: IP20

Remote on/off connector
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.

Technical specifications
