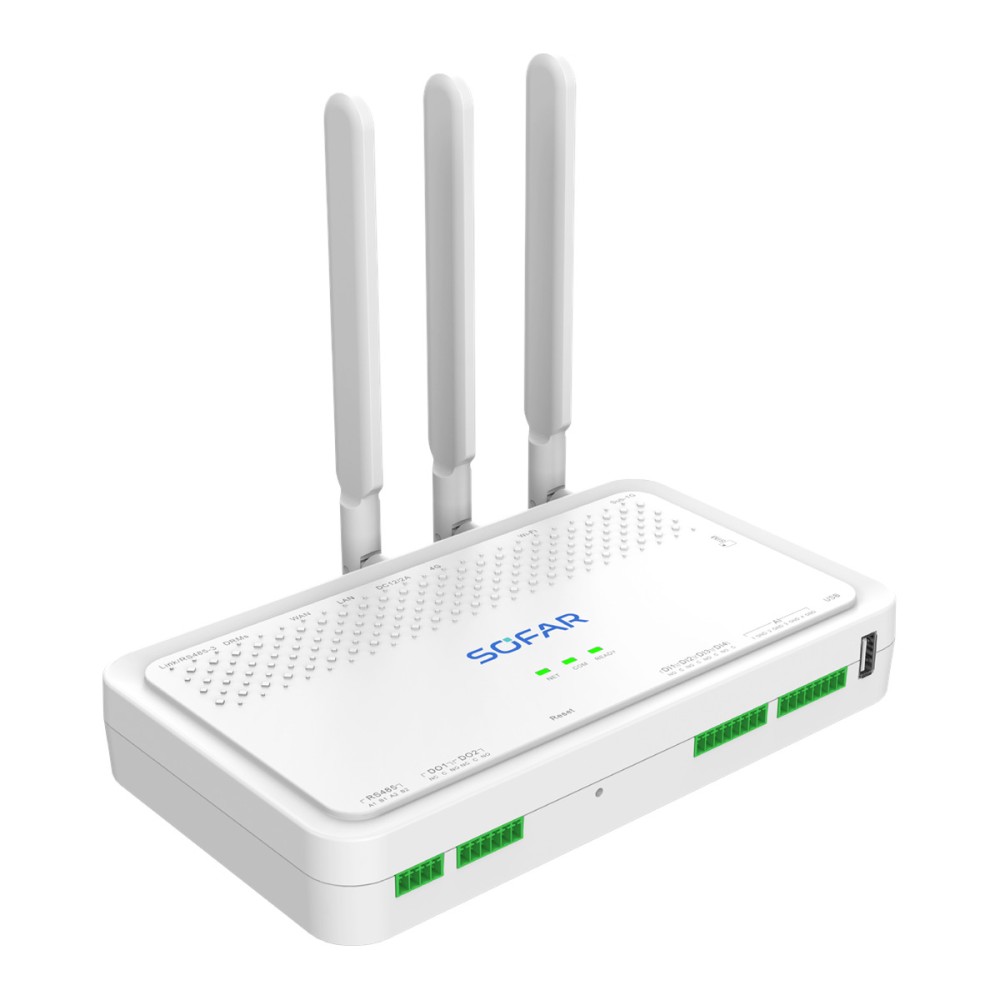

CH1000 is a SOFAR datalogger (Control Hub) for up to 60 devices connected over RS485: inverters, batteries, meters, EV chargers or heat pumps. It connects to SofarCloud over 2.4 GHz Wi-Fi or two Ethernet ports, with 4G as an option. It measures 217 x 125 x 34 mm and weighs 0.5 kg.
CH1000 is a SOFAR datalogger (Control Hub) that collects data from up to 60 devices over RS485 and sends it to SofarCloud over Wi-Fi or Ethernet, with optional 4G communication. It includes energy management and feed-in limitation functions.
CH1000 combines cloud or app monitoring of inverters, batteries, energy meters, EV chargers and heat pumps, a built-in energy management system (self-consumption, time-of-use mode, scheduled charging and discharging, VPP access) and emergency power-off in milliseconds. For feed-in limitation a meter, for example the CHINT DTSU666, is connected over RS485.
The SOFAR datasheet lists the inverters SOFAR 3.3-12KTLX-G3, 15-24KTLX-G3, 15-25KTLX-G3P, 25-50KTLX-G3, 60-80KTLX-G3, 100-125KTLX-G4, 250-255KTL-HV and 250-350KTLX0 as compatible. The device operates from -30 to 65 °C, up to 3000 m altitude, and is certified to IEC 61000-6-1/2/3/4, CE-RED and RoHS.
| Manufacturer | SOFARSOLAR |
|---|---|
| Model | CH1000 |
| Maximum number of devices | 60 |
| Communication to inverter | RS485 |
| Power supply | external adapter, input 100 ... 240 V AC, 50 or 60 Hz, output 12 V / 2 A |
| Power consumption | typical 5.0 W |
| Wi-Fi | 2.4 GHz, 802.11b/g/n |
| Mobile | optional, LTE CAT.4 |
| Ethernet | RJ45 x 2, 10/100 Mbps |
| RS485 | COM x 3, Modbus-RTU |
| DRM | RJ45 x 1, DRM0/5/6/7/8 |
| Analog signal input | 4 x 4-20 mA |
| Digital signal output | 2 x dry contact |
| Digital signal input | 4 x dry contact |
| Indicators | 3 LEDs |
| App | SofarCloud |
| Operating temperature range | -30 ... 65 °C |
| Environmental rating | IP20 |
| Altitude | 3000 m |
| Dimensions (height x width x depth) | 34 x 217 x 125 mm |
| Weight | 0.5 kg |
| Installation method | wall, desktop or DIN rail |
| Certificates | IEC 61000-6-1/2/3/4, CE-RED, RoHS |
| Inverter compatibility | SOFAR 3.3-12KTLX-G3, 15-24KTLX-G3, 15-25KTLX-G3P, 25-50KTLX-G3, 60-80KTLX-G3, 100-125KTLX-G4, 250-255KTL-HV, 250-350KTLX0 |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
