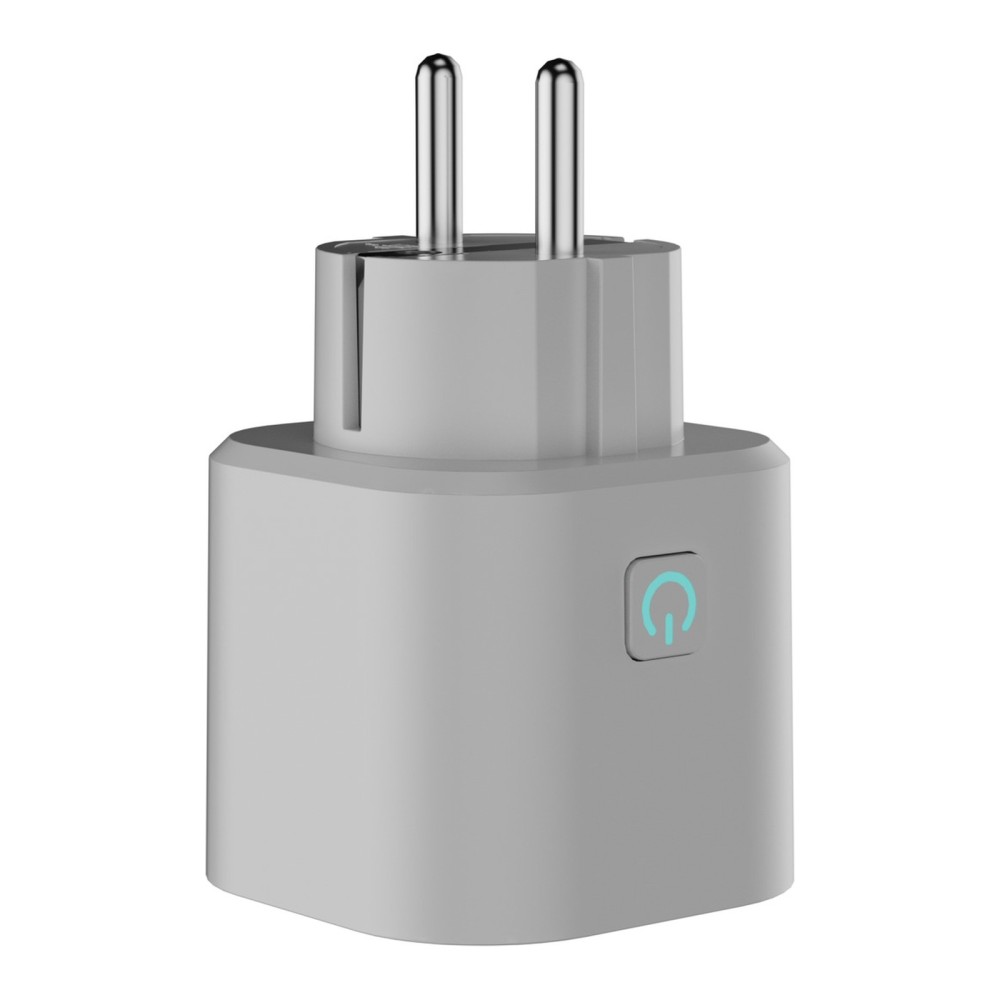

Intelligente Steckdose Deye LoRa, 16 A, SUN-SMART-PLUG01-F

Name: Intelligente Steckdose Deye LoRa, 16 A, SUN-SMART-PLUG01-F
Brand: Deye
SKU: SUN-SMART-PLUG01-F
Price: 73.00 EUR
Availability: InStock

73 € Steuern inklusive

61 € Ohne Steuern

SUN-SMART-PLUG01-F is a Deye smart plug with LoRa communication, for loads up to 16 A at 220-250 V AC. It allows power monitoring and control via Deye Cloud, strategies by time, SOC and grid status, and the definition of critical and non-critical loads. Flame-retardant housing, Class I protection, IP20.

Referenz SUN-SMART-PLUG01-F

Ihre Rechte aus der gesetzlichen Gewährleistung

SUN-SMART-PLUG01-F - 16 A LoRa smart plug

SUN-SMART-PLUG01-F is a Deye smart plug with LoRa communication that makes any connected appliance controllable. It allows real-time power monitoring and control via Deye Cloud, with strategies defined by time, battery level (SOC) and grid status.

Main features:

Rated voltage: 220-250 V AC
Maximum current: 16 A AC
Communication: LoRa, about 200 m without obstacles
Protection class: Class I, flame-retardant housing
Protection degree: IP20
Dimensions: 51.2 x 51.2 x 64 mm

The plug goes directly into the wall socket and makes the connected appliance controllable. Custom strategies can be defined by time, SOC and grid status, and critical and non-critical loads are easy to define.

LoRa communication offers low latency and long range, and the system can also work offline. The plug complies with VDE 0620-2-1 and EN 61058 and operates from -40 to 60 °C.

Technical specifications

Rated voltage	220-250 V AC
Maximum current	16 A AC
Frequency and range	50 Hz (45-55 Hz) / 60 Hz (55-65 Hz)
Connection	Plug-type
Communication type	LoRa
LoRa communication distance	About 200 m (barrier free)
Working temperature range	-40 ... 60 °C
Permissible ambient humidity	0-95% RH
Ingress protection (IP) rating	IP20
Protection level	Class I
Allowable altitude	Max. 3000 m
Product size (width x height x depth)	51.2 x 51.2 x 64 mm
Weight	0.08 kg
Standard	VDE 0620-2-1, EN 61058
LoRa frequency range	863-870 MHz
Antenna	Internal antenna

Datenblatt

Referenz: SUN-SMART-PLUG01-F
MPN: SUN-SMART-PLUG01-F
Produkttyp: Zubehör
Nennstrom (genauer Wert): 16 A
Kommunikationsschnittstellen: LoRa
Abmessungen (H x B x T): 51,2 x 51,2 x 64 mm
Gewicht: 0,08 kg
Schutzart (IP): IP20
Betriebstemperatur: -40 ... 60 °C

Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
