3.564 € Ohne Steuern

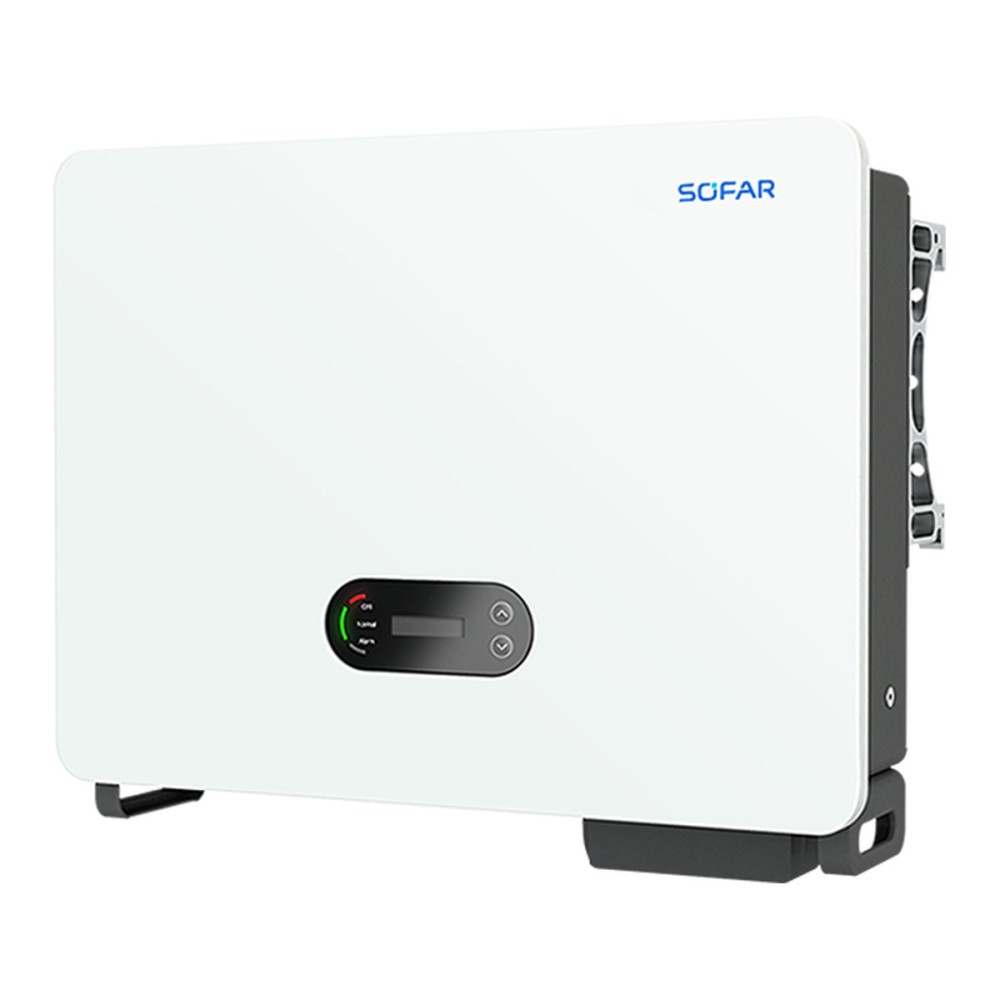

80KTLX-G3 is a SOFAR three-phase on-grid inverter rated 80 kW (maximum apparent power 88 kVA), with 6 MPPTs, a 180-1000 V MPPT range and a maximum efficiency of 98.7%. It has IP66 protection, RS485 and Wi-Fi communication, an LCD with Bluetooth and app access, and weighs 50 kg.
80KTLX-G3 is a three-phase on-grid string inverter from SOFAR with a rated power of 80 kW, 6 MPPTs and IP66 protection, for medium-sized commercial and industrial PV systems.
Each of the 6 MPPTs takes a maximum input current of 40 A and a short-circuit current of 60 A, with 1.5 times DC overload. On the AC side the inverter tolerates a prolonged 110% overload. It works with PV modules of 500 W and above, starts at a low voltage (200 V) and offers I-V curve scanning.
Protections include DC reverse polarity, anti-islanding, leakage current, ground fault, PV string fault monitoring, a DC switch and type II surge protection on DC and AC. The 80KTLX-G3 is wall mounted, and at 50 kg unpacking and moving it takes at least two people. It operates from -30 to 60 °C, up to 4000 m altitude (derating above 3000 m), with air cooling.
| Maximum input voltage | 1100 V |
|---|---|
| Rated input voltage | 620 V |
| Start-up voltage | 200 V |
| MPPT operating voltage range | 180-1000 V |
| Number of MPP trackers | 6 |
| Number of DC inputs | 2 for each MPPT |
| Maximum input current per MPPT | 6 x 40 A |
| Maximum short-circuit current per MPPT | 6 x 60 A |
| Rated output power | 80000 W |
| Maximum apparent power | 88 kVA |
| Maximum output current | 133.3 A |
| Rated output voltage | 3/N/PE, 230/400 V |
| Output voltage range | 310-480 V |
| Rated output frequency | 50/60 Hz |
| Output frequency range | 45-55 Hz / 55-65 Hz |
| Active power adjustable range | 0-100 % |
| THDi | under 3% |
| Power factor | 1 (adjustable +/-0.8) |
| Maximum efficiency | 98.7 % |
| European efficiency | 98.2 % |
| DC reverse polarity protection | Yes |
| Anti-islanding protection | Yes |
| Leakage current protection | Yes |
| Ground fault monitoring | Yes |
| PV-array string fault monitoring | Yes |
| DC switch | Yes |
| Surge protection (SPD) | PV: type II, AC: type II |
| Ambient temperature range | -30 ... 60 °C |
| Self-consumption at night | under 2 W |
| Topology | Transformerless |
| Degree of protection | IP66 |
| Allowable relative humidity range | 0-100 % |
| Maximum operating altitude | 4000 m (derating above 3000 m) |
| Cooling | Smart air cooling |
| Dimensions (W x H x D) | 687 x 561 x 275 mm |
| Weight | 50 kg |
| Display | LCD & Bluetooth + APP |
| Communication | RS485, Wi-Fi |
| Standards | IEC/EN 61000-6-2/4, IEC 61000-3-4/5, IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC/EN 62109-1/2, G99, VDE-AR-N 4105, VDE V 0126-1-1, EN 50549-1, UNE 217002-2020 |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
