1.253 € Ohne Steuern

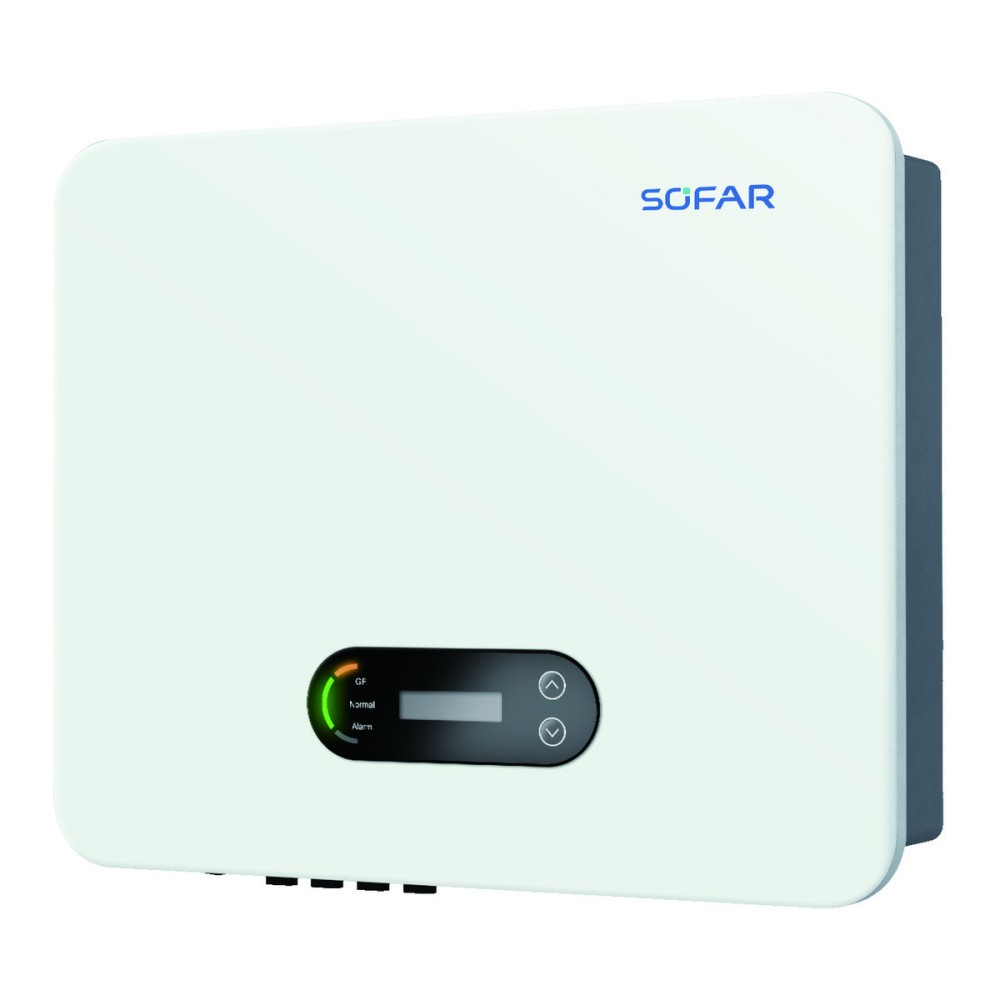

24KTLX-G3 is a three-phase SOFAR on-grid inverter of 24 kW (maximum apparent power 26.4 kVA), with 2 MPPT, an MPPT range of 140-1000 V and a maximum DC input voltage of 1100 V. The maximum efficiency is 98.6%, the maximum AC output current is 38.3 A and the protection rating is IP65. The dimensions are 520 x 430 x 198 mm (width x height x depth) and the weight is 23 kg.
24KTLX-G3 is a three-phase SOFAR on-grid inverter with a rated output power of 24 kW (26.4 kVA maximum apparent power), two MPPT trackers, a DC input of up to 1100 V and a maximum efficiency of 98.6%. It has IP65 protection, smart fan cooling and weighs 23 kg.
The inverter connects to the three-phase 230/400 V grid (310-480 V, 50/60 Hz) and has two independent MPPT trackers with two DC inputs each (26 A per MPPT, PV short-circuit current 36 A), with a maximum input voltage of 1100 V. It accepts a long-term overload of 110%, which is why the maximum apparent power is 26.4 kVA at a rated power of 24 kW.
The protections include DC reverse polarity, anti-islanding, leakage current, ground fault monitoring and PV string fault monitoring, a DC switch and type II surge protection on the DC and AC sides. The inverter offers string-level monitoring and remote firmware upgrade, with smart fan cooling. The LCD display and the Bluetooth connection with an app allow commissioning, and a stick logger (Wi-Fi, GPRS or Ethernet) can be added as an option for remote monitoring. It operates between -30 and +60 °C, up to 4000 m altitude.
| Max. DC input voltage | 1100 V |
|---|---|
| Rated input voltage | 650 V |
| Start-up voltage | 160 V |
| MPPT operating voltage range | 140-1000 V |
| Number of MPP trackers | 2 |
| Number of DC inputs | 4 (2 for each MPPT) |
| Max. input current per MPPT | 26 A / 26 A |
| Max. short-circuit current per MPPT | 36 A / 36 A |
| Rated output power | 24000 W |
| Max. apparent power | 26400 VA |
| Max. output current | 38.3 A |
| Rated output voltage | 3/N/PE, 230/400 V AC |
| Output voltage range | 310-480 V AC |
| Rated output frequency | 50/60 Hz |
| Output frequency range | 45-55 Hz / 55-65 Hz |
| Active power adjustable range | 0-100% |
| Total harmonic distortion of current (THDi) | under 3% |
| Power factor | 1 (adjustable +/-0.8) |
| Max. efficiency | 98.6% |
| European efficiency | 98.2% |
| DC reverse polarity protection | Yes |
| Anti-islanding protection | Yes |
| Leakage current protection | Yes |
| Ground fault monitoring | Yes |
| PV string fault monitoring | Yes |
| DC switch | Yes |
| Surge protection | type II on the DC and AC sides |
| Ambient temperature range | -30 ... +60 °C |
| Self-consumption at night | under 1 W |
| Topology | transformerless |
| Degree of protection | IP65 |
| Allowable relative humidity range | 0-100% |
| Max. operating altitude | 4000 m |
| Cooling | with fan (smart air cooling) |
| Dimensions (W x H x D) | 520 x 430 x 198 mm |
| Weight | 23 kg |
| Display | LCD and Bluetooth with app |
| Communication | RS485, Bluetooth; optional Wi-Fi |
| Standards | IEC/EN 62109-1/2, IEC 62116, IEC 61727, G99, VDE-AR-N 4105, VDE V 0126-1-1, EN 50549-1, NRS 097-2-1 |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
