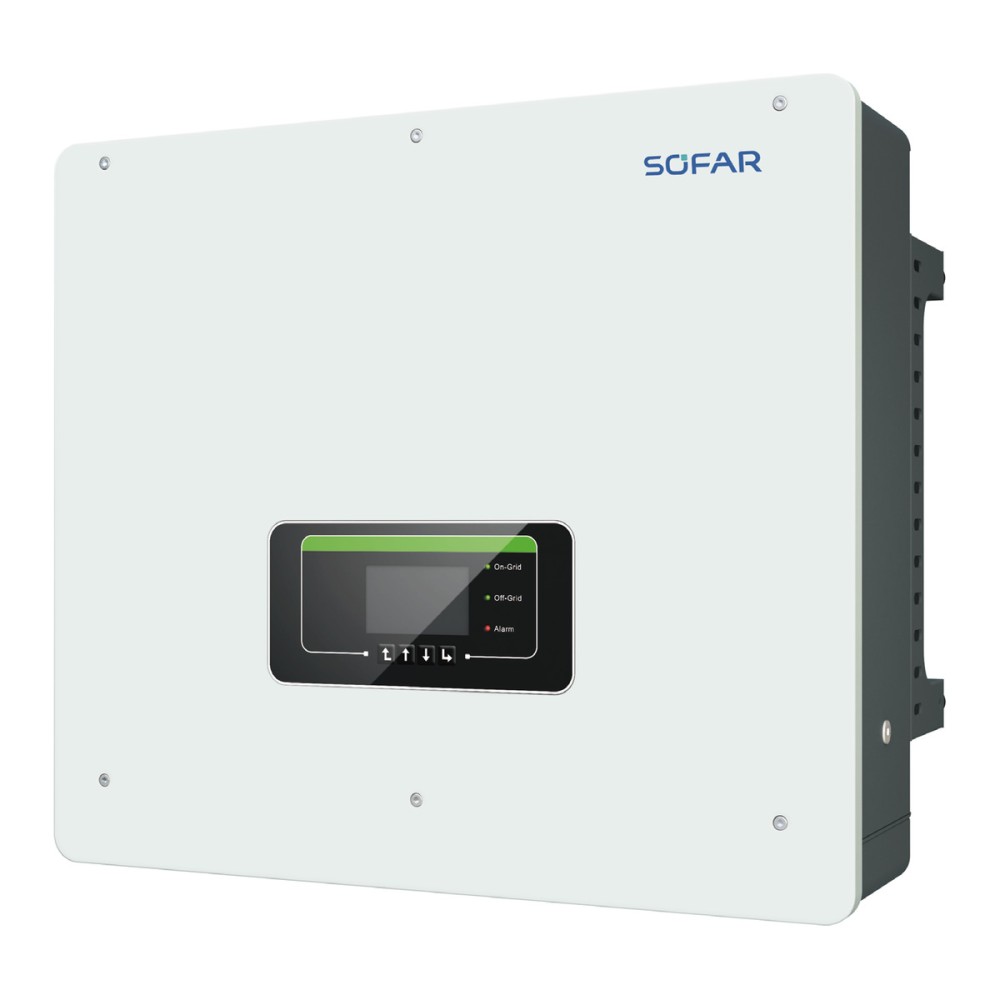

HYD 8KTL-3PH is a 8 kW three-phase HV hybrid inverter with 2 MPPT inputs (180-960 V) and one battery input (180-800 V, 25 A charge and discharge). It needs a high-voltage battery, which is not included; the manufacturer documentation mentions SOFAR BTS 5K and GTX 3000-H. Backup output with switchover under 10 ms, IP65, 33 kg.
HYD 8KTL-3PH is a 8 kW three-phase high-voltage (HV) hybrid inverter with 2 MPPT inputs and one battery input, fully digital operation and a backup output that supports unbalanced loads. It is not an all-in-one system: the battery is mounted separately from the inverter.
The inverter requires a high-voltage (HV) battery, with a voltage between 180 and 800 V. The manufacturer documentation describes connecting SOFAR BTS 5K modules (towers from BTS E5-DS5 to BTS E20-DS5, 5.12 kWh per module) and SOFAR GTX 3000-H batteries (2.5 kWh modules). The battery is not included in this product. The 5 to 8 kW models have one battery input and the 10 to 20 kW models have two.
The backup output has a power equal to the rated power, a peak of 16000 VA for 60 s and a switchover under 10 ms, and the off-grid output can supply unbalanced loads. The recommended PV power is up to 12000 Wp (150% of the rated power). Up to 6 inverters can operate in parallel, with monitoring through an app.
Interfaces: RS485, CAN and Wi-Fi, optional Ethernet or 4G, with an LCD and Bluetooth. Protections: DC switch, PV and battery reverse polarity, output short circuit, overcurrent and overvoltage, insulation monitoring, residual current, anti-islanding and type II surge protection on PV and AC. The inverter is transformerless and wall mounted.
| Recommended max. PV power | 12000 Wp |
|---|---|
| Max. PV input voltage | 1000 V |
| Start-up voltage | 200 V |
| Rated input voltage | 600 V |
| MPPT operating voltage range | 180-960 V |
| Number of MPPT | 2 |
| Max. strings per MPPT | 1/1 |
| Max. PV input current per MPPT | 12.5/12.5 A |
| Max. PV short-circuit current per MPPT | 15/15 A |
| Battery voltage range | 180-800 V |
| Number of battery input channels | 1 |
| Max. charge/discharge power | 8 kW |
| Max. charge/discharge current | 25 A |
| Battery type | Lithium-ion and lead-acid |
| BMS communication | CAN, RS485 |
| Rated grid power | 8 kW |
| Rated grid current | 11.6 A |
| Grid voltage and frequency | 3/N/PE, 230/400 V, 50/60 Hz |
| Max. grid apparent power | 8800 VA |
| Max. current output to grid | 13 A |
| Max. AC current from grid | 24 A |
| Power factor | 0.8 lagging - 0.8 leading |
| Rated backup power | 8 kW |
| Peak backup apparent power | 16000 VA, 60 s |
| Max. backup output current | 13 A |
| Switching time | under 10 ms |
| Max. MPPT efficiency | 99.9 % |
| Max. efficiency | 98.0 % |
| European efficiency | 97.5 % |
| Battery-AC efficiency, charging/discharging | 97.6 % |
| Max. number of parallel units | 6 |
| Standby self-consumption | under 20 W |
| Ingress protection | IP65 |
| Operating temperature range | -30 ... 60 °C |
| Cooling | natural |
| Dimensions (W x H x D) | 586.6 x 515 x 261.2 mm |
| Weight | 33 kg |
| Communication | RS485, CAN, Wi-Fi; optional Ethernet or 4G |
