518 € Ohne Steuern

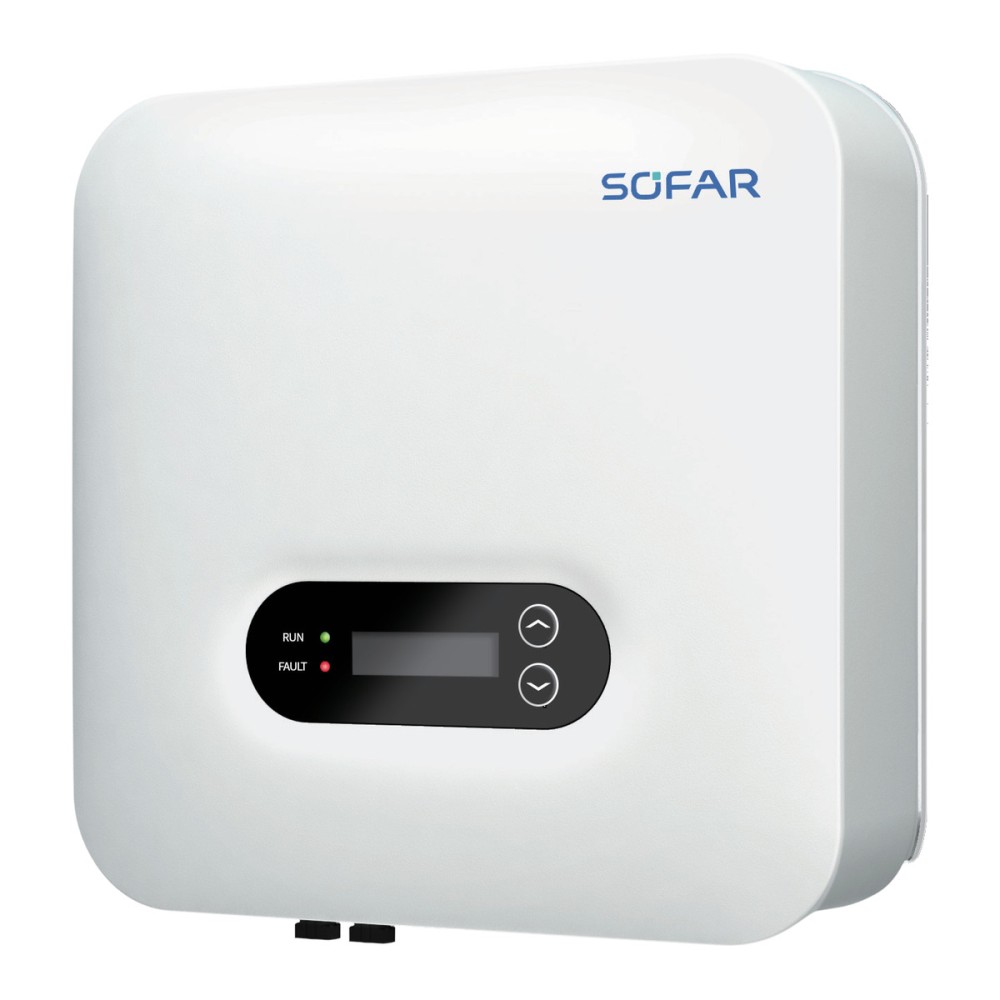

5KTLM-G3 is a single-phase SOFAR on-grid inverter of 5 kW (maximum apparent power 5.5 kVA), with 2 MPPT, an MPPT range of 80-550 V and a maximum DC input voltage of 600 V. The maximum efficiency is 98.4%, the maximum AC output current is 25 A and the protection rating is IP65. The dimensions are 349 x 344 x 164 mm (width x height x depth) and the weight is 10 kg.
5KTLM-G3 is a single-phase SOFAR on-grid inverter with a rated output power of 5 kW (5.5 kVA maximum apparent power), two MPPT trackers, a DC input of up to 600 V and a maximum efficiency of 98.4%. It has IP65 protection, natural cooling without a fan and weighs 10 kg.
The inverter is wall mounted and feeds the energy produced by the PV panels into the single-phase 230 V grid (180-276 V, 50/60 Hz). The two independent MPPT inputs of 15 A each allow two strings with different orientations or tilts to be connected, with a permitted DC overload of 150%. The feed-in limitation function allows the power fed into the grid to be limited.
The protections include DC reverse polarity, anti-islanding, leakage current, ground fault monitoring and PV string fault monitoring, a DC switch and type III surge protection on the DC and AC sides. The LCD display and the Bluetooth connection with an app allow commissioning and reading of the data, and a Wi-Fi or Ethernet stick logger can be added as an option for remote monitoring. The inverter operates between -30 and +60 °C, up to 4000 m altitude.
| Max. DC input voltage | 600 V |
|---|---|
| Rated input voltage | 380 V |
| Start-up voltage | 90 V |
| MPPT operating voltage range | 80-550 V |
| Number of MPP trackers | 2 |
| Number of DC inputs | 1 for each MPPT |
| Max. input current per MPPT | 15 A / 15 A |
| Max. short-circuit current per MPPT | 22.5 A / 22.5 A |
| Rated output power | 5000 W |
| Max. apparent power | 5500 VA |
| Max. output current | 25 A |
| Rated output voltage | L/N/PE, 230 V AC |
| Output voltage range | 180-276 V AC |
| Rated output frequency | 50/60 Hz |
| Output frequency range | 45-55 Hz / 55-65 Hz |
| Active power adjustable range | 0-100% |
| Total harmonic distortion of current (THDi) | under 3% |
| Power factor | 1 (adjustable +/-0.8) |
| Max. efficiency | 98.4% |
| European efficiency | 97.5% |
| DC reverse polarity protection | Yes |
| Anti-islanding protection | Yes |
| Leakage current protection | Yes |
| Ground fault monitoring | Yes |
| PV string fault monitoring | Yes |
| DC switch | Yes |
| Surge protection | type III on the DC and AC sides |
| Ambient temperature range | -30 ... +60 °C |
| Self-consumption at night | under 1 W |
| Topology | transformerless |
| Degree of protection | IP65 |
| Allowable relative humidity range | 0-100% |
| Max. operating altitude | 4000 m |
| Cooling | natural |
| Dimensions (W x H x D) | 349 x 344 x 164 mm |
| Weight | 10 kg |
| Display | LCD and Bluetooth with app |
| Communication | RS485, Bluetooth; optional Wi-Fi |
| Standards | IEC/EN 62109-1/2, IEC 62116, IEC 61727, VDE-AR-N 4105, VDE V 0126-1-1, C10/11, UNE 217002:2020, G98/G99, EN 50549-1, ANRE 208 |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
