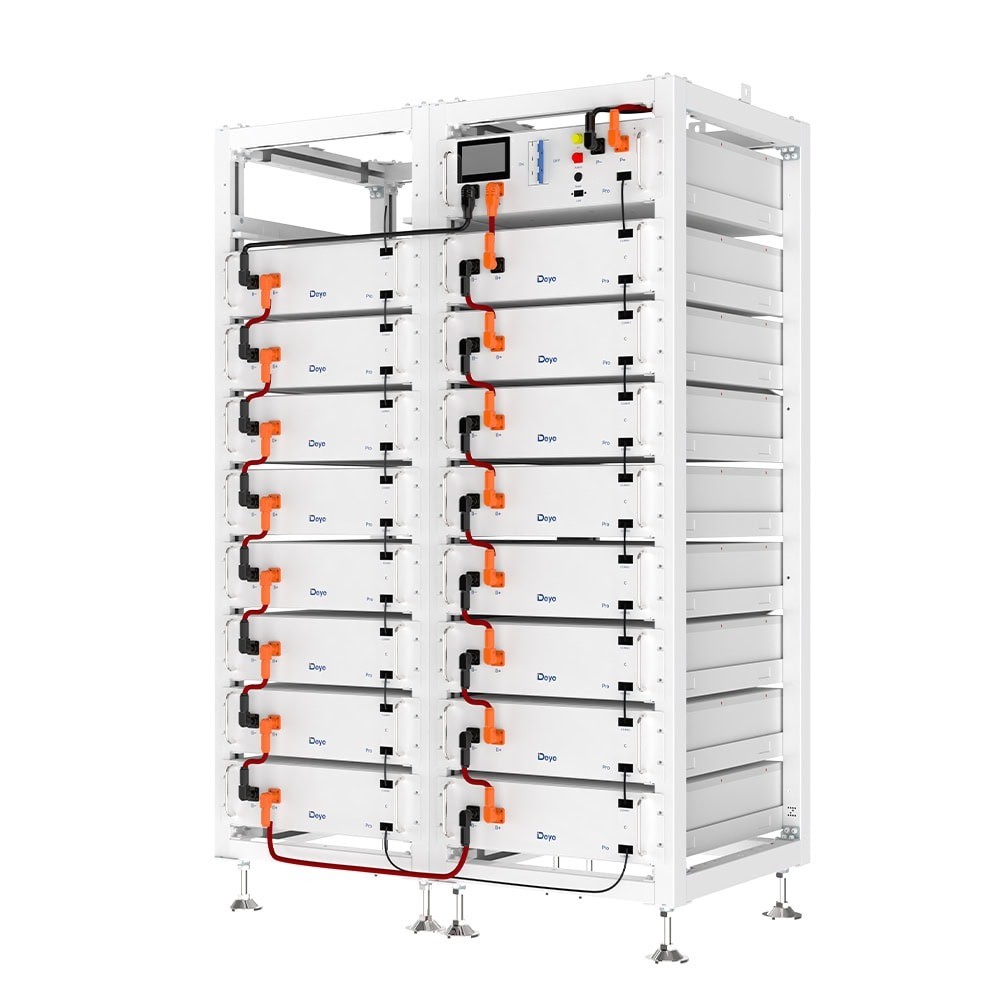

Deye Rack für BOS-G Pro, 12 Module, 3U-HRACK

3U-HRACK - 19 inch rack for BOS-G Pro, 12 modules

3U-HRACK is an optional standard 19 inch rack for the Deye BOS-G Pro battery series. It holds 12 BOS-G-Pack5.1 battery modules and one high voltage control box, which corresponds to a 61.44 kWh system.

Main features:

• Type: standard 19 inch rack, optional
• Capacity: 12 battery modules and one control box
• Compatibility: Deye BOS-G Pro series
• Dimensions: 530 x 602 x 2219 mm
• Weight: 51 kg, empty rack
• Door: can be fitted as an option

The rack is empty: the BOS-G-Pack5.1 battery modules and the BOS-G-PDU-2 control box are separate products. With 12 modules of 5.12 kWh each the result is a 61.44 kWh configuration, such as the BOS-G60-Pro system.

The dimensions and weight are those of the empty rack, as stated in the BOS-G Pro series datasheet.

Technical specifications
