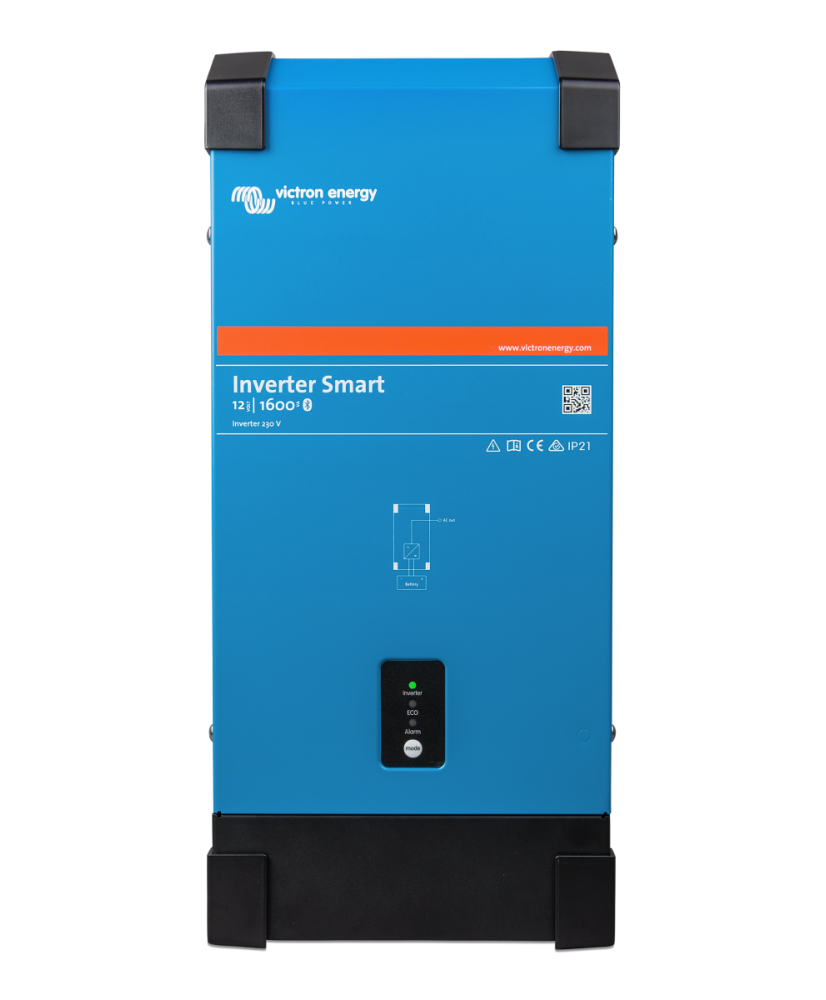

Inverter 12/1600 230V Smart - Inverter with Bluetooth 12 V, 1600 VA
The Inverter 12/1600 230V Smart is a 1,600 VA inverter for 12 V systems, with a full metal casing and a toroidal transformer that provides high peak power and a high-quality sine wave. Built-in Bluetooth allows alarms, relay, voltage cut-off, output voltage, frequency and ECO mode to be configured in VictronConnect. It is short-circuit proof and protected against overheating.
Main features:
- Battery voltage: 12 V (9.3-17 V)
- Continuous power: 1,600 VA / 1,300 W at 25 °C
- Peak power: 3,000 W, for LED converters, halogen lamps, power tools
- AC output: 230 V, 50 or 60 Hz, adjustable 210-245 V
- Maximum efficiency: 92 %
- Connectivity: Bluetooth, VE.Direct, programmable alarm relay
The Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA, 3000VA and 5000VA for 12, 24 or 48V systems.
It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.
Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.
Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.
Technical specifications
| Nominal battery voltage | 12 V |
|---|
| DC input voltage range | 9.3 … 17 V |
|---|
| AC output voltage | 230 V |
|---|
| Frequency | 50Hz or 60Hz |
|---|
| Continuous output power at 25 °C (VA) | 1600 VA |
|---|
| Continuous output power at 25 °C (W) | 1300 W |
|---|
| Continuous output power at 40 °C | 1200 W |
|---|
| Continuous output power at 65 °C | 800 W |
|---|
| Peak power | 3000 W |
|---|
| Dynamic low DC shutdown | Yes |
|---|
| Maximum efficiency | 92 % |
|---|
| Zero load power | 8 W |
|---|
| Zero load power in ECO mode | 0.6 W |
|---|
| ECO mode stop/start power setting | Adjustable |
|---|
| Parallel and 3-phase operation | No |
|---|
| Remote on/off terminal | Yes |
|---|
| Programmable relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
|---|
| Bluetooth | Yes |
|---|
| Communication port | Bluetooth, VE.Direct |
|---|
| Fully programmable | Yes |
|---|
| Protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
|---|
| Operating temperature range | -40 … 65 °C |
|---|
| Maximum humidity | 95 % |
|---|
| AC connection | Screw terminals |
|---|
| Battery connection | M8 bolts |
|---|
| Remote control terminal | Screw terminal two pole |
|---|
| Relay terminal | Screw terminal 3-pole |
|---|
| Colour | Blue (RAL 5012) and Black (RAL 9017) |
|---|
| Material | Steel |
|---|
| Protection category | IP21 |
|---|
| Weight | 12 kg |
|---|
| Height | 482 mm |
|---|
| Width | 219 mm |
|---|
| Depth | 125 mm |
|---|
| Safety | EN-IEC 60335-1 |
|---|
| Emission and immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
|---|
| Automotive directive | ECE R10-5 |
|---|
