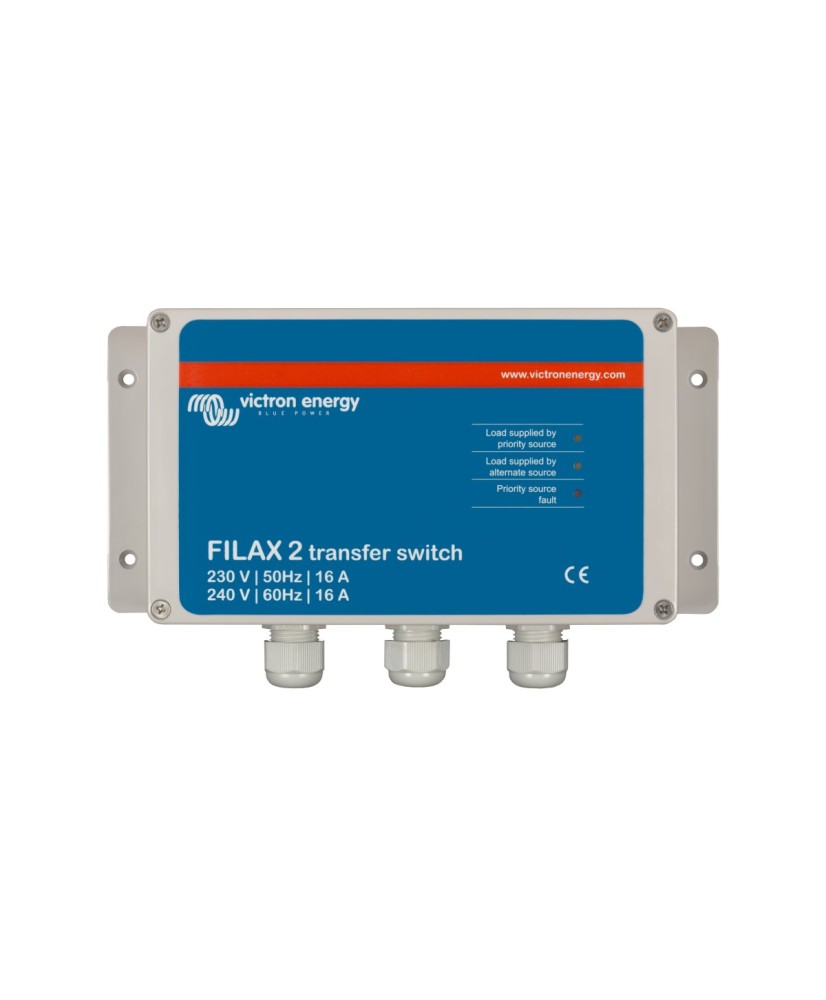

Filax 2 CE 230V/50Hz-240V/60Hz - Automatic transfer switch 16A
Filax 2 Transfer Switch CE 230V/50Hz-240V/60Hz switches sensitive loads, such as computers or modern electronic equipment, between two AC sources. The priority source is typically the mains, a generator or shore power, and the alternate source an inverter. With a 16 ms transfer time, loads keep running without disruption. It is not intended for high-power appliances such as washing machines.
Main features:
- Rated current: 16 A
- Transfer time: 16 ms
- Switching conditions: below 180 V or frequency out of range
- Switch-back delay: 30 s
- Protection rating: IP65
The Filax has been designed to switch sensitive loads, such as computers or modern entertainment equipment from one AC source to another. The priority source typically is the mains, a generator or shore power. The alternate source typically is an inverter. With its switching time of less than 20 milliseconds, sensitive loads will continue to operate without disruption. The Filax is not intended to supply high power household equipment like washing machines or electric motors.
The Filax 2 is available in two models:
- 230V/50Hz-240V/60Hz
- 110V/50Hz-120V/60Hz
Technical specifications
| Current rating | 16 A |
|---|
| Low voltage switching | 180 V |
|---|
| Low voltage switch-back | 188 V |
|---|
| Low frequency switching (50 Hz) | 45 Hz |
|---|
| Low frequency switching (60 Hz) | 46 Hz |
|---|
| Low frequency switch-back (50 Hz) | 47 Hz |
|---|
| Low frequency switch-back (60 Hz) | 52 Hz |
|---|
| High frequency switching (50 Hz) | 60 Hz |
|---|
| High frequency switching (60 Hz) | 68 Hz |
|---|
| High frequency switch-back (50 Hz) | 56 Hz |
|---|
| High frequency switch-back (60 Hz) | 63 Hz |
|---|
| Input voltage (priority input) | 260 V |
|---|
| Input voltage (alternate input) | 260 V |
|---|
| Transfer time | 16 ms |
|---|
| Switch-back delay | 30 s |
|---|
| Operating temperature range | -20 … 50 °C |
|---|
| Maximum humidity | 95 % |
|---|
| LED - load on priority input | Yellow |
|---|
| LED - load on alternate input | Yellow |
|---|
| LED - load fault | Red |
|---|
| AC connections | Screw terminals |
|---|
| Material | ABS |
|---|
| Colour | Light grey (RAL 7035) |
|---|
| Protection category | IP65 |
|---|
| Weight | 0.8 kg |
|---|
| Height | 120 mm |
|---|
| Width | 255 mm |
|---|
| Depth | 75 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29 |
|---|
| Emission and immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
|---|
