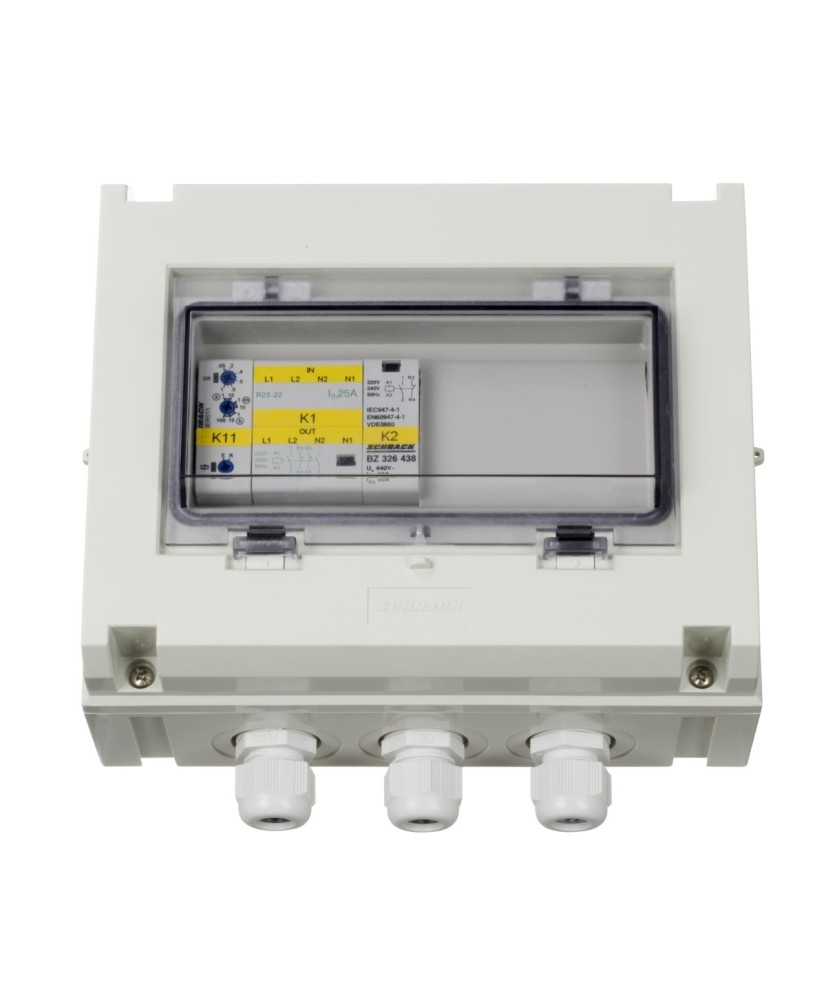

VE Transfer Switch 10KVA, single-phase, 200-250Vac Victron Energy

VE Transfer Switch 10KVA, single-phase, 200-250Vac - Automatic AC transfer switch

VE Transfer Switch 10KVA is a single-phase automatic transfer switch for 200-250 V AC that switches between two power sources: generator and shore power, inverter and generator, or inverter and shore power. It has two inputs and one output rated 40 A and automatically transfers the available AC power to the output.

Main features:

• AC voltage: 200-250 V, single-phase
• Input/output current: 40 A
• Transfer time: 10-20 ms closing, 5-30 ms opening
• Contact delay: Approx. 10 s, adjustable
• Auxiliary contact: 200-240 V AC, 20 A
• Protection rating: IP54, ABS enclosure

The VE Transfer Switch automatically switches between different power sources: between a generator and shore power, between an inverter and a generator or between an inverter and shore power.
The VE Transfer Switch has two inputs and one output, it automatically transfers the available AC power to the output.

The VE Transfer Switch is available in two models:

• 5kVA, single phase, 200-250Vac
• 10kVA, single phase, 200-250Vac

Technical specifications
