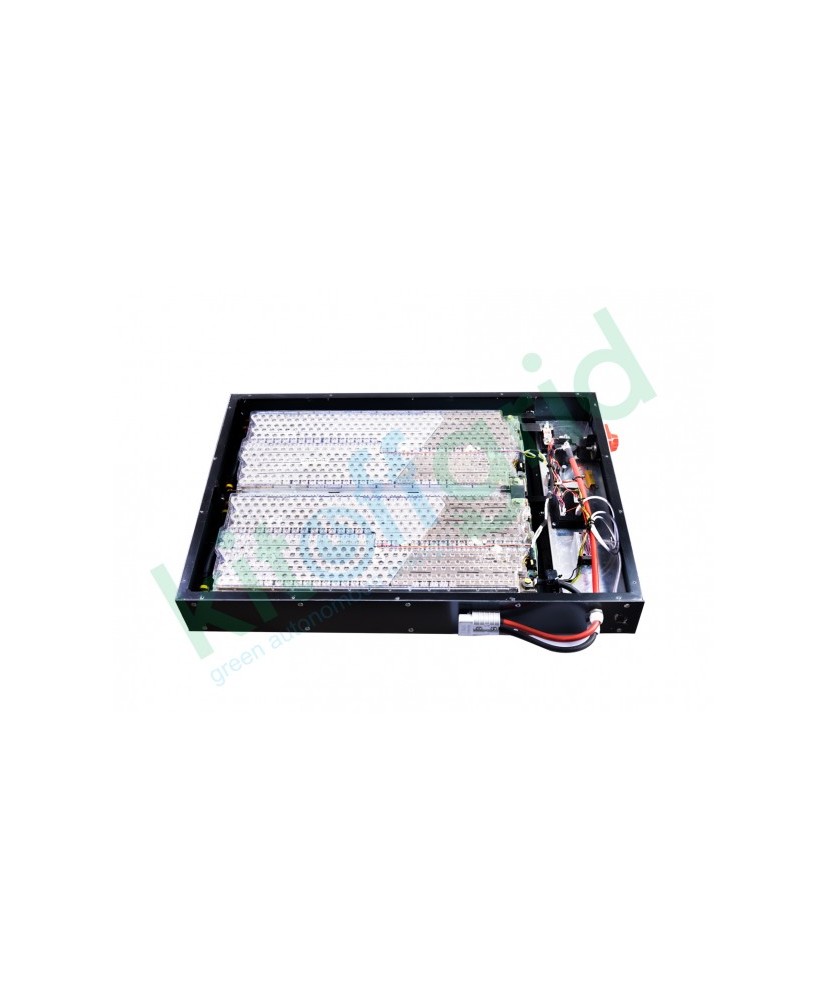

BMS module Huawei LUNA2000-5KW-C0


The LUNA2000-5KW-C0 power control module is compatible with Huawei Luna batteries and is designed to maintain their best working condition and health.


BMS module Huawei LUNA2000-5KW-C0
The module regulates the times and energy of charging and discharging the accumulators depending on the current supplied by the inverter and the power requirement for consumers, then when there is no electricity from the grid or when the photovoltaic panels do not supply enough electricity.

Compatibility: single-phase and three-phase inverters
Number of modules: 1
Power: 5 kWh
Maximum output power: 2.5 kW
Peak output power: 3.5 kW, 10 sec
Nominal voltage (single-phase system): 360 V
Voltage operating range (single-phase system): 350-560 V
Nominal voltage (three-phase system): 600 V
Operating voltage range (three-phase system: 600 - 980 V
Screen: indicator SOC status, LED indicator
Interface: RS485/CAN (only for parallel operations)
Scalability: maximum 2 systems in parallel
Technology: lithium-iron phosphate (LiFePO4)
Cooling: without fan
Protection degree: IP66
Operating temperature: -10°C - +55°C
Dimensions: 670 x 150 x 960 mm
Weight (Set of tools for floor stand included): 113.8 Kg
Power module size: 670 x 150 x 240 mm
Power module weight: 12 Kg
Battery module dimensions: 670 x 150 x 360 mm
Battery module weight: 50 Kg
