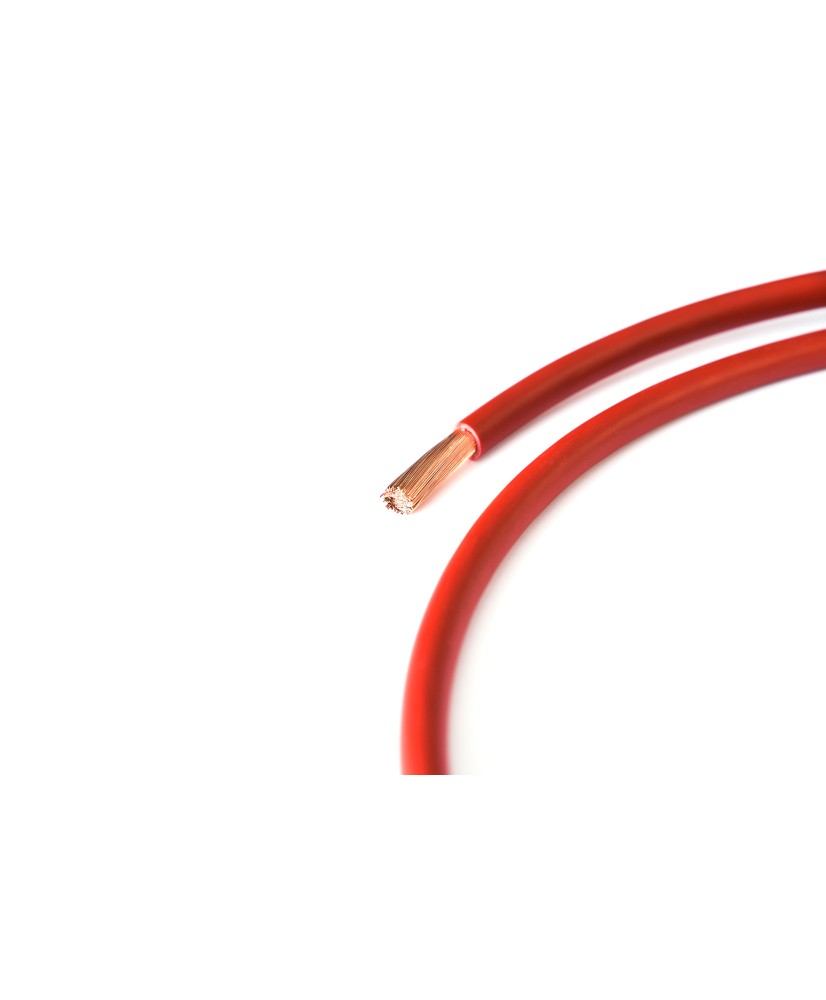

Photovoltaic red cable 70 mm2

Cable Structure

 - Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5

 - Core insulation: PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI1)

 - Core identification: see datasheet

Notes

 The conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only

 Approved core colours: black, green-yellow, blue, brown, red, white, grey, violet, orange, pink

Application

Installation in electrical conduits, on or under plaster or similar enclosed systems. Suitable for protected and fixed installation in lighting systems or switching and control devices up to and including 1000 V AC voltage or up to 750 V DC voltage against earth. Not suitable for direct laying in cable ladders and cable trays, except as a potential equalization cable.
